Belt Series
› Easy operation enable to finish all processing automatically, incluiding vacuum, seal, cool and dispatch, only afterproducts are loaded on belt.
› Versatile machie with inclinable 0‹`20‹and wider seal. Suitable for juicy product.
› Improved safety structure. The safe guard device of chamber front and back, the seal warning device, emergency stop device etc.


YB35/YB46

› Suitable for mass production with wide range of bags.
› Adoption of detachable belt, which can be easily handled, makes it easy to clean the reverse of belt.
› Extensive use of stainless steel, incluiding stainless pipe frame.
› Improved safety structure, such as a machine doesn't run, when chamber opens.

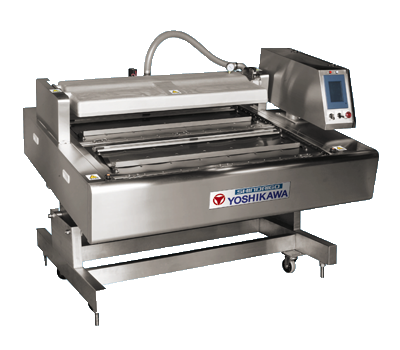

YB35-46
yVacuum Chamberz
YV35-46—LŒψ‘–@

i‡oj
Type Vacuum chamber
(Seal Imprint)
Packaging
Ability
Power
Supply
Vacuum
Pump
Dimension Weight Cooling
Water
W D H W D H
YB35-70 1,200
(8~1,120
~1)
415
(350)
70 2`3
times/min.
3phase
200V
50/60Hz
7.0kw
50Hz:
2,670L/min.
60Hz:
3,200L/min.
(5.5kw)
1,710 1,490 1,375 450‡s(machine)
160kg(Pump)
4L/min.
YB35-100 100
YB46-70 525
(460)
70 1,720 480‡s(machine)
160kg(Pump)
YB46-100 100


YB46T-100

› Efficient in production being equipped with double sealing devices to arrange small bags in two lines on the belt.
› Front sealing devices can be taken off according to useing big size bags.
› Adoption of detachable belt, which can be easily handled, makes it easy to clean the reverse of belt.
› Extensive use of stainless steel, incluiding stainless pipe frame.
YB46T-100
yVacuum Chamberz
YB46T—LŒψ‘–@

i‡oj
Type Vacuum chamber
(Seal Imprint)
Packaging
Ability
Power
Supply
Vacuum
Pump
Dimension Weight Cooling
Water
W D H W D H
YB46T-100 1,200
(8‡o~1,120
~2)
525
(460)
100 2`3
times/min.
3 phase
200V
50/60Hz
7.0kw
50Hz:
2,670L/min.
60Hz:
3,200L/min.
(5.5kw)
1,710 1,720 1,375 560‡s(machine)
160kg(Pump)
4L/min.
