floor

N32/N46

○	Anyone can operate with easy handling and adjustment.
○	Minimum floor space with compact design and easy relocating with built-in vacuum pump and csaters.
○	Versatile machie with inclinable 0°～20°and wider seal. Suitable for juicy product.
○	Anti-rust frame with stenless steal.
○	Gas-flush function is optional.

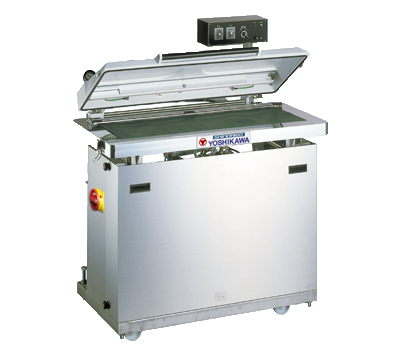

N32-46

【Vacuum Chamber】

（㎜）

Type	Vacuum Chamber (Seal Imprint)				Packaging Ability	Power Supply	Vacuum Pump	Dimension			Weight
	W	D	H	Pit				W	D	H
N32	980 (8㎜× 920×1)	370 (320)	40	40	1.5～2.5 times/min.	3 phase 200V 50/60Hz 3.0k	50Hz: 1,050L/min. 60Hz: 1,260L/min.	1,060	721	1,250	220㎏
N46-P60		510 (460)		60					780		255㎏

NL46-P60

○	Versatile machie with two side of the sealing bar.
○	Suitable for large production. The pit of the chamber is 60mm and the height is 80mm.
○	Versatile machie with inclinable 0°～20°and wider seal. Suitable for juicy product.
○	Anti-rust frame with stenless steal.
○	Gas-flush function is optional.

N46-P60

【Vacuum Chamber】

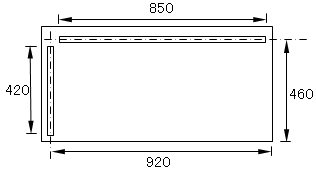

NL46-P40有効寸法

（㎜）

Type	Vacuum Chamber(Seal Imprint)				Packaging Ability	Power Supply	Vacuum Pump	Dimension			Weight
Type	W	D	H	Pit	Packaging Ability	Power Supply	Vacuum Pump	W	D	H	Weight
NL46-P60	1000 W:8×850×1 D:8×420×1	510 (460)	80	60	1.5～2.5 times/min.	3 phase 200V 50/60Hz 3.0kw	50Hz: 1,050L/min 60Hz: 1,260L/min (2.2kw)	1,060	800	1,240	270㎏

LH-P60(200)

○	Versatile machie with three side of the sealing bar.
○	Convenient for movement with caster. Compact design requiring minimum floor space.
○	The pit of the vacuum chamber, 60mm or 200mm is selectable.
○	Versatile machie with inclinable 0°～20°and wider seal. Suitable for juicy product.
○	Gas-flush function is optional.

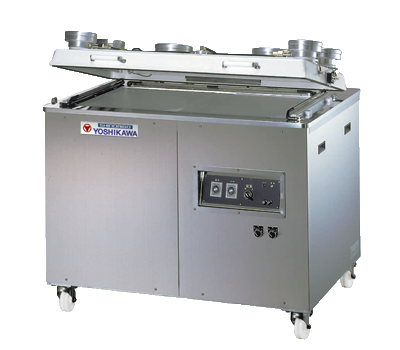

LH-P60

【Vacuum Chamber】

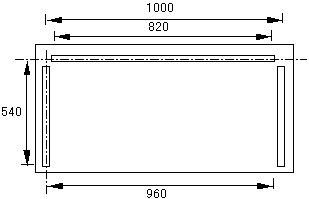

LH-P60有効寸法

（㎜）

Type	Vacuum Chamber(Seal Imprint)				Packaging Ability	Power Supply	Vacuum Pump	Dimension			Weight
	W	D	H	Pit				W	D	H
LH-P60	1080 W:8×820×1 D:8×540×2	580 (540)	60	60	1.5～2.5 times/min.	3 phase 200V 50/60Hz 5.0kw	50Hz: 1,670L/分 60Hz: 2,000L/分 (3.0kw)	1,160	830	1,030	365㎏
LH-P200				200							390㎏

VMS-223

○	Convenient for movement with caster. Compact design requiring minimum floor space.
○	Digital operation panel (nine kinds of program memory and test program memory) which was superior in operability.
○	Sealing position is selectable in two version.
○	Gas-flush function is optional.

VMS223

【Vacuum Chamber】

VMS223有効寸法A VMS223有効寸法B

（㎜）

Type		Vacuum Chamber(Seal Imprint)			Packaging Ability	Power Supply	Vacuum Pump	Dimension			Weight
		W	D	P				W	D	H
VMS-223	Ａ	610 (3.5×580×1) Double Seal	530 (475)	200	1.5～2.5 times/min.	3 phase 200V 50/60Hz 2.5kw	50Hz: 1,050L/min. 60Hz: 1,260L/min. (2.2kw)	680	670	1,030	142㎏
	Ｂ	610 (3.5×500×2本) Double Seal	530 (500)

VMS-333

○	Convenient for movement with caster. Compact design requiring minimum floor space.
○	Sanitary with the flat molding board of stainless steal.
○	Digital operation panel (nine kinds of program memory and test program memory) which was superior in operability.
○	Sealing position is selectable in two version.
○	Gas-flush funtion is optional.

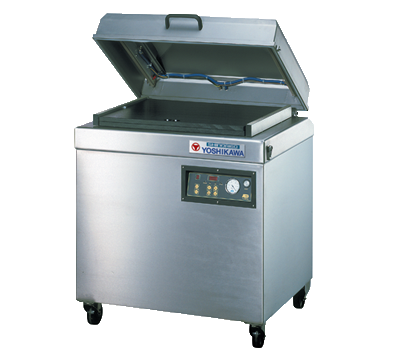

VMS333

【Vacuum Chamber】

（㎜）

Type		Vacuum Chamber			Packaging Ability	Power Supply	Vacuum Pump	Dimension			Weight
		W	D	H				W	D	H
VMS-333	Ａ	840 (3.5×550×2) Double Seal	590 (700)	220	1.5～2.5 times/min.	3 phase 200V 50/60Hz 3.5kw	50Hz: 1,670L/min. 60Hz: 2,000L/min. (3.0kw)	920	790	1,135	251㎏
	Ｂ	840 3.5×800×2 Double Seal	590 (450)
