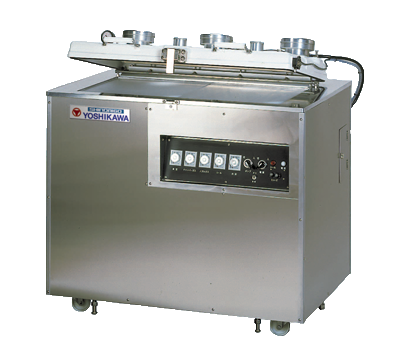

GN45-P40(80)

○ By nozzle gas, combination of chamber gas, there is stable high purity non-activity gas packing.
○ Minimum floor space with compact design and easy relocating with built in vacuum pump and casters.
○ vacuum time, gas filling up time are by dial adjustment
GN45-P40
　【Vacuum Chamber】
GN有効寸法

(㎜)
Type Vacuum Chamber
(Seal Imprint)		 Packaging
Ability		 Power
Supply		 Vacuum
Pump		 Dimension Weight
W D H P W D H
GN45-P40 880
(8㎜×820×1本)
※ガスノズル:
標準4ヶ口		 530
(450)		 50 40 1.5～2.5
回/分		 3相200V
50/60Hz
3.0kw
(総容量)		 50Hz:
1,050L/分
60Hz:
1,260L/分
(2.2kw)		 1,060 732 870 320㎏
GN45-P80 80 330㎏
※能力は被包装物により異なる場合があります。

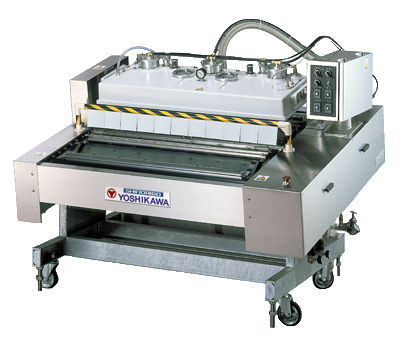

GB32/GB45

○ Easy operation enable to finish all processing automatically, incluiding vacuum, seal, cool and dispatch, only afterproducts are loaded on belt.
○ Versatile machie with inclinable 0°～20°and wider seal. Suitable for juicy product.
○ Improved safety structure. The safe guard device of chamber front and back, the seal warning device, emergency stop device etc.
GB32/GB45
　【Vacuum Chamber】
　
GB有効寸法

(㎜)
Type Vacuum Chamber
(Seal Imprint)		 Ability Power
Supply		 Vacuum
Pump		 Dimension Weight Cooling Water
W D H W D H
GB32-60 1,340
(8㎜×1,000×1本)
※ガスノズル:
標準6ヶ口		 390
(320)		 60 2～3
回/分		 3phase
200V
50/60Hz
7.0kw		 50Hz:
2,670L/min.
60Hz:
3,200L/min.
(5.5kw)		 1,590 1,430 1,275 465㎏
(machine)
540㎏
(pump)		 4L/min.
GB32-100 100
GB45-60 520
(450)		 60 1,760 540㎏
(machine)
160kg
(pump)
GB45-100 100
